Puf Panel

Puf Panel Specification

Feature
Weather Resistant, Eco-friendly, Fire Retardant, High Insulation

Density
402 Gram per cubic centimeter(g/cm3)

Size
Panel Length up to 12 m (custom length available)

Surface Treatment
Pre-painted / Galvanized / Color Coated

Installation Guideline
Modular interlocking for easy assembly with tongue & groove joint

Coating Type
PE / Polyester / SMP / PVDF

Thermal Conductivity
0.023-0.026 W/mK

Layer
Double Skin (Galvanized Sheet both sides)

Product Type
Insulated Sandwich Panel

Material
PUF (Polyurethane Foam) with Pre-painted Galvanized Iron Sheets (PPGI)

Tensile Strength
4.0-7.5 kg/cm2

Width
1000 mm

Thickness
30 mm, 40 mm, 50 mm, 60 mm, 80 mm, 100 mm (as per requirement)

Application
Cold Storage, Clean Room, Prefabricated Buildings, Roofs, Walls

Heat Conductivity
0.023-0.026 W/mK

Color
Standard White/Grey/Customized

Max Withstanding Temperature
-40C to +80C

Compressive Strength
> 0.20 MPa

Water Absorption
Less than 2% by volume

Facing Thickness
0.40 mm to 0.80 mm (each side)

Shear Strength
> 0.12 kg/cm2

Weight
Approx. 10-15 kg/m2

Fire Resistance
Self-extinguishing as per IS 12436

Panel Edges
Rebated / Overlap / L-shaped available

Panel Joint Type
Cam Lock / Tongue & Groove

Sound Insulation
28-32 dB

Core Type
Rigid Polyurethane Foam (CFC-free)

Puf Panel Trade Information

Minimum Order Quantity
10 Square Foots

Delivery Time
10 Days

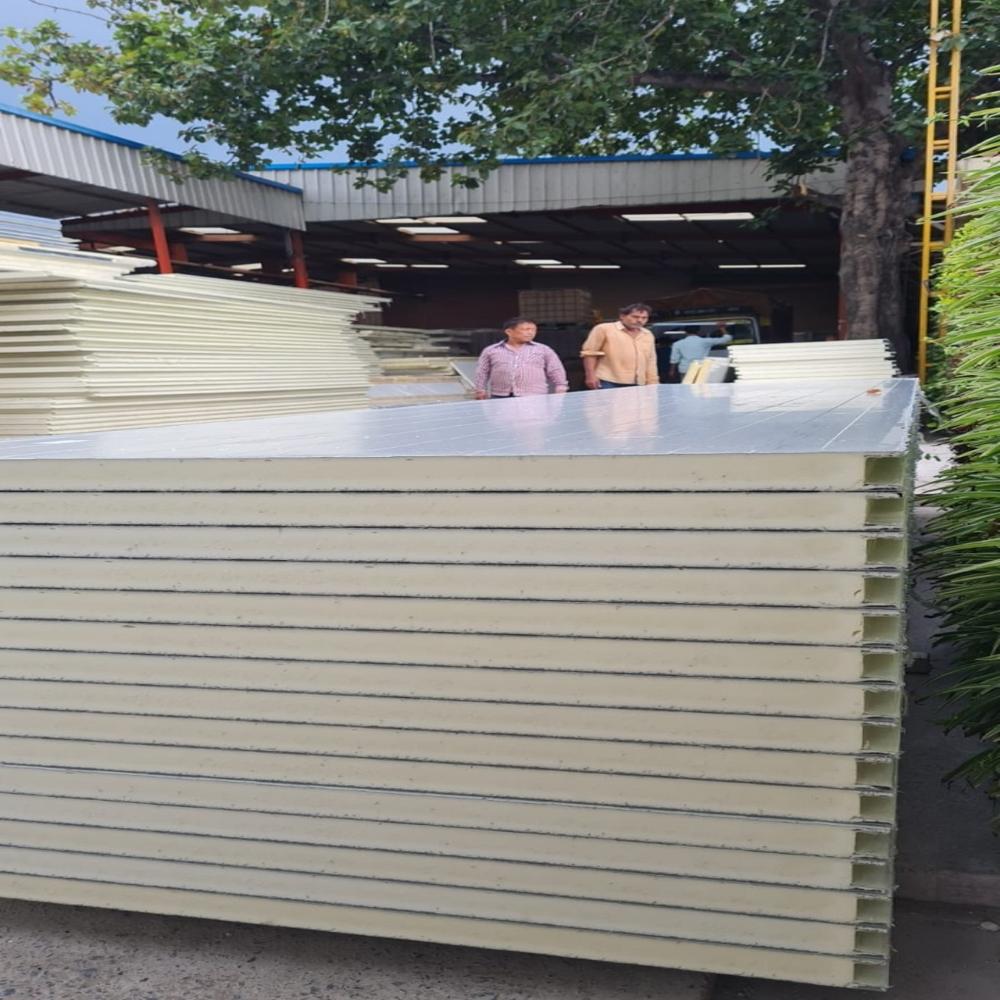

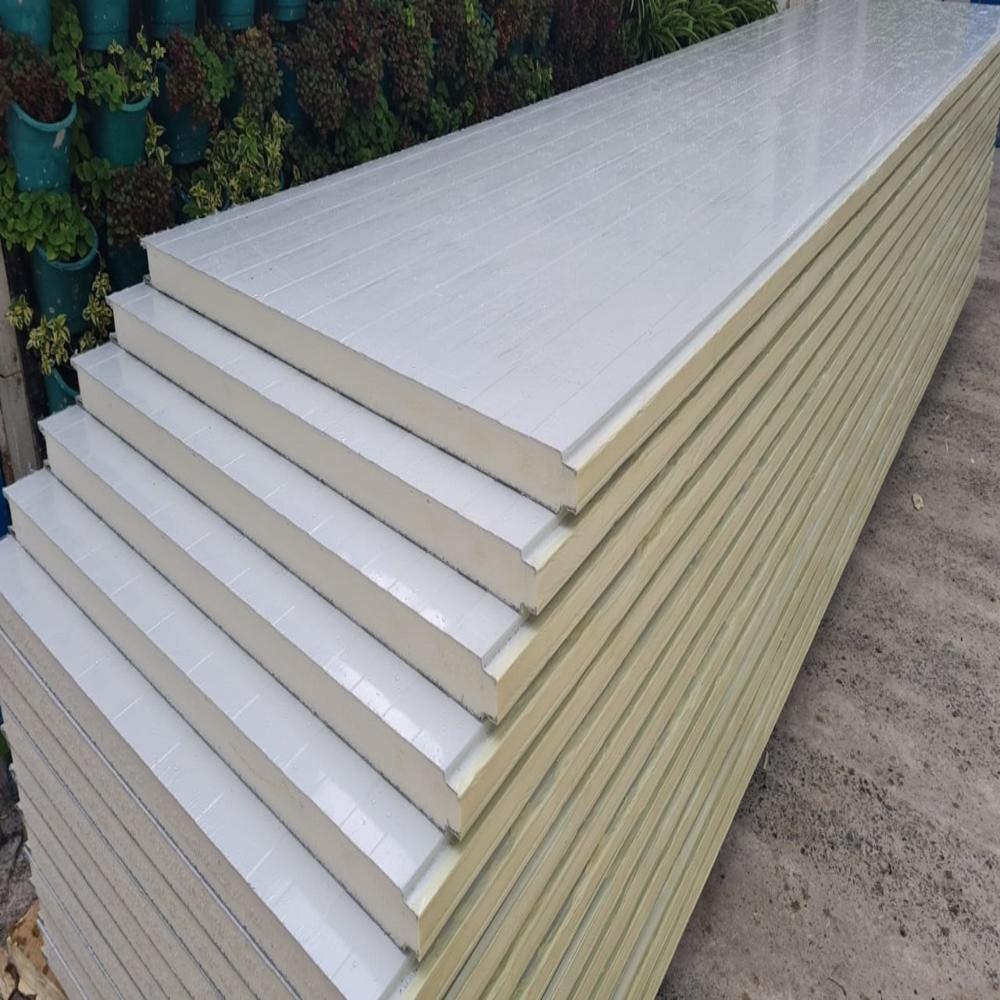

About Puf Panel

PUF (Polyurethane Foam) Panels are high-performance insulated panels designed for thermal insulation in various industrial, commercial, and residential applications. These panels consist of rigid polyurethane foam sandwiched between two layers of pre-painted galvanized steel (PPGI), galvanized iron (GI), stainless steel (SS), or aluminum sheets.

PUF panels provide excellent thermal insulation, high strength, durability, and energy efficiency. They help in maintaining controlled temperatures, reducing energy consumption, and improving overall operational efficiency.

Key Features:

Excellent thermal insulation

Lightweight and strong structure

High durability and long service life

Fire-retardant options available

Easy and fast installation

Moisture and corrosion resistant

Energy-efficient and eco-friendly

Technical Specifications:

Core Material: Polyurethane Foam (PUF)

Density: 3842 kg/m (customizable)

Thickness: 30 mm to 150 mm (or as required)

Sheet Thickness: 0.35 mm to 0.6 mm

Thermal Conductivity: 0.0220.028 W/mK

Applications:

Cold storage and freezer rooms

Clean rooms and laboratories

Pharmaceutical and food processing units

Modular buildings and prefabricated houses

Industrial sheds and warehouses

Insulated roofing and wall cladding

Benefits:

Maintains stable internal temperature

Reduces HVAC load and electricity cost

Fast construction and neat finish

Hygienic and easy to clean

High Insulation and Fire Safety

Engineered with rigid polyurethane foam and sandwiched between galvanized iron sheets, Puf Panels offer exceptional insulation and fire resistance. The self-extinguishing property, as per IS 12436, enhances safety, while the panels also deliver impressive thermal and acoustic performance.

Versatile Applications Across Industries

Puf Panels are ideal for cold storages, clean rooms, prefab buildings, and more, thanks to their adaptability, structural strength, and ability to maintain controlled environments. Their customizable sizes and easy-to-assemble joint types offer flexible solutions for a wide array of project requirements.

Easy Installation and Modular Design

The modular interlocking system with tongue & groove or cam lock joints ensures swift and secure assembly on site. This design minimizes installation time and labor, while ensuring airtight joins for superior insulation and weather protection.

FAQ's of Puf Panel:

Q: How are Puf Panels installed at a construction site?

A: Puf Panels are designed for ease of installation using modular interlocking systems such as tongue & groove or cam lock joints. The panels are aligned and locked into place, providing tight, seamless connections that minimize thermal bridging and enhance structural stability.

Q: What are the key benefits of using Puf Panels in building projects?

A: Puf Panels offer outstanding thermal and sound insulation, fire resistance, and low water absorption. They are lightweight, eco-friendly, and can be quickly installed, reducing construction time and improving energy efficiency. Their versatile panel edges and joint types further enhance adaptability to various applications.

Q: When should Puf Panels be chosen over conventional construction materials?

A: Puf Panels are ideal when superior insulation, rapid construction, weather resistance, and fire safety are required. They excel in cold storage, clean rooms, prefabricated buildings, and environments demanding strict temperature and acoustic control.

Q: Where can Puf Panels be effectively used?

A: Puf Panels are suitable for diverse applications such as cold storages, clean rooms, prefabricated structures, roofs, walls, and partitions in commercial, industrial, or pharmaceutical settings across India. Their customizable lengths and thicknesses enable adaptation to specific architectural needs.

Q: What care or maintenance is required for Puf Panels?

A: Puf Panels are low maintenance due to their pre-painted, galvanized surfaces and weather-resistant design. Regular inspection for any physical damage or sealant deterioration at joints ensures long-lasting performance and integrity.

Q: How do Puf Panels contribute to energy efficiency in buildings?

A: Thanks to high insulation values (thermal conductivity of 0.023-0.026 W/mK) and airtight modular joints, Puf Panels minimize energy loss, helping maintain stable internal temperatures and reducing the demand on heating or cooling systems.
